MEMS IMU & Sensors
Compact MEMS. Proven precision. From consumer to tactical grade.

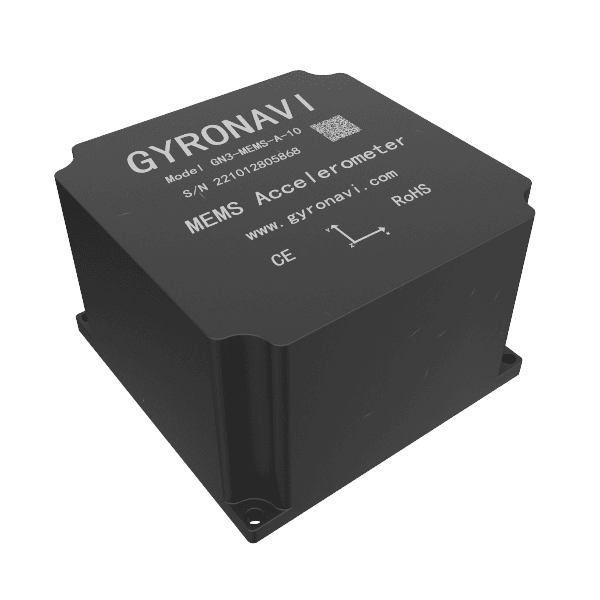

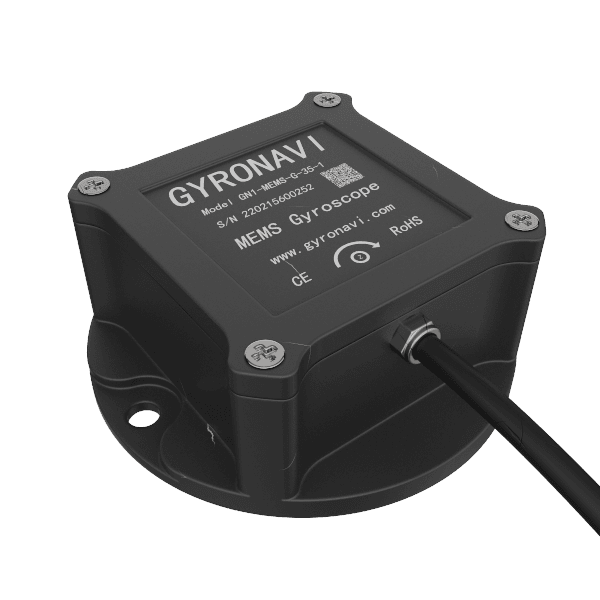

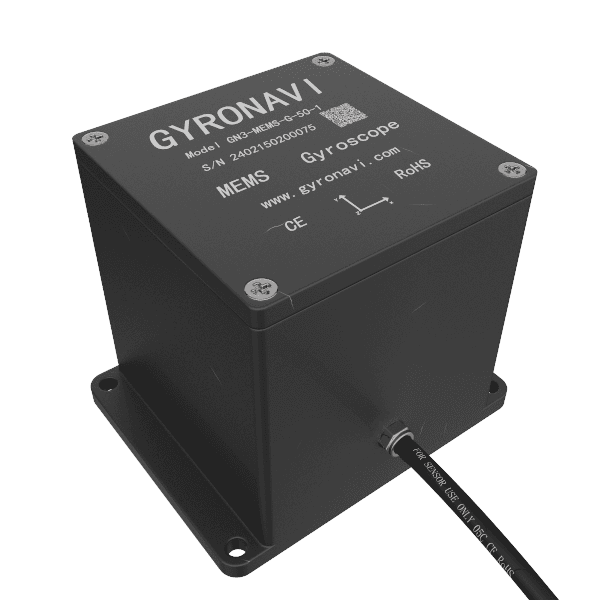

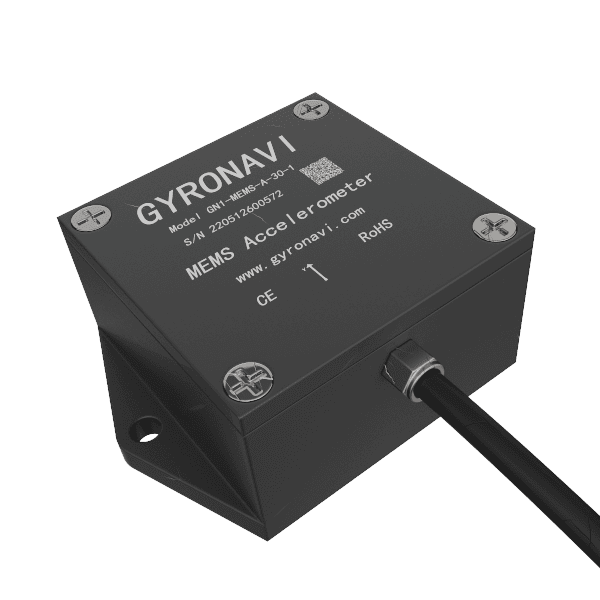

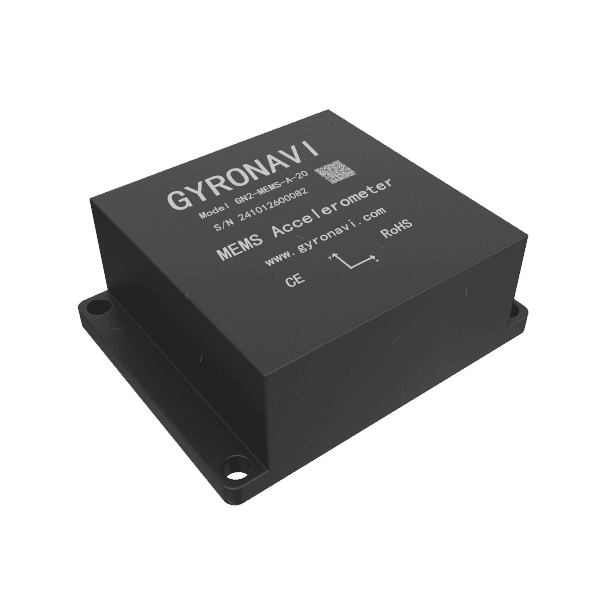

Our MEMS product line includes triaxial accelerometers (GN1/GN2/GN3 series), single and triaxial gyroscopes, and fully integrated 6-DOF IMU modules. Leveraging advanced silicon micromachining and proven MEMS sensing technology, these sensors deliver reliable performance from consumer-grade to tactical-grade applications. Optimized for size, weight, and power (SWaP)-constrained platforms including UAVs, robotics, and portable navigation systems.
| Technology | Silicon MEMS (Micro-Electro-Mechanical Systems) |
|---|---|
| Gyro Range | ±300°/s to ±900°/s (model-dependent) |
| Accel Range | ±10g to ±30g (model-dependent) |
| Bias Stability | Gyro: 0.5°/h to 10°/h; Accel: 0.002mg to 0.5mg |
| Bandwidth | ≥ 100 Hz (up to 200 Hz on select models) |
| Interface | SPI / RS-422 / RS-232; optional CAN, UART |
| Operating Temperature | -40°C to +85°C |
| Weight | From 5 g (discrete sensors) to < 50 g (6-DOF IMU module) |
